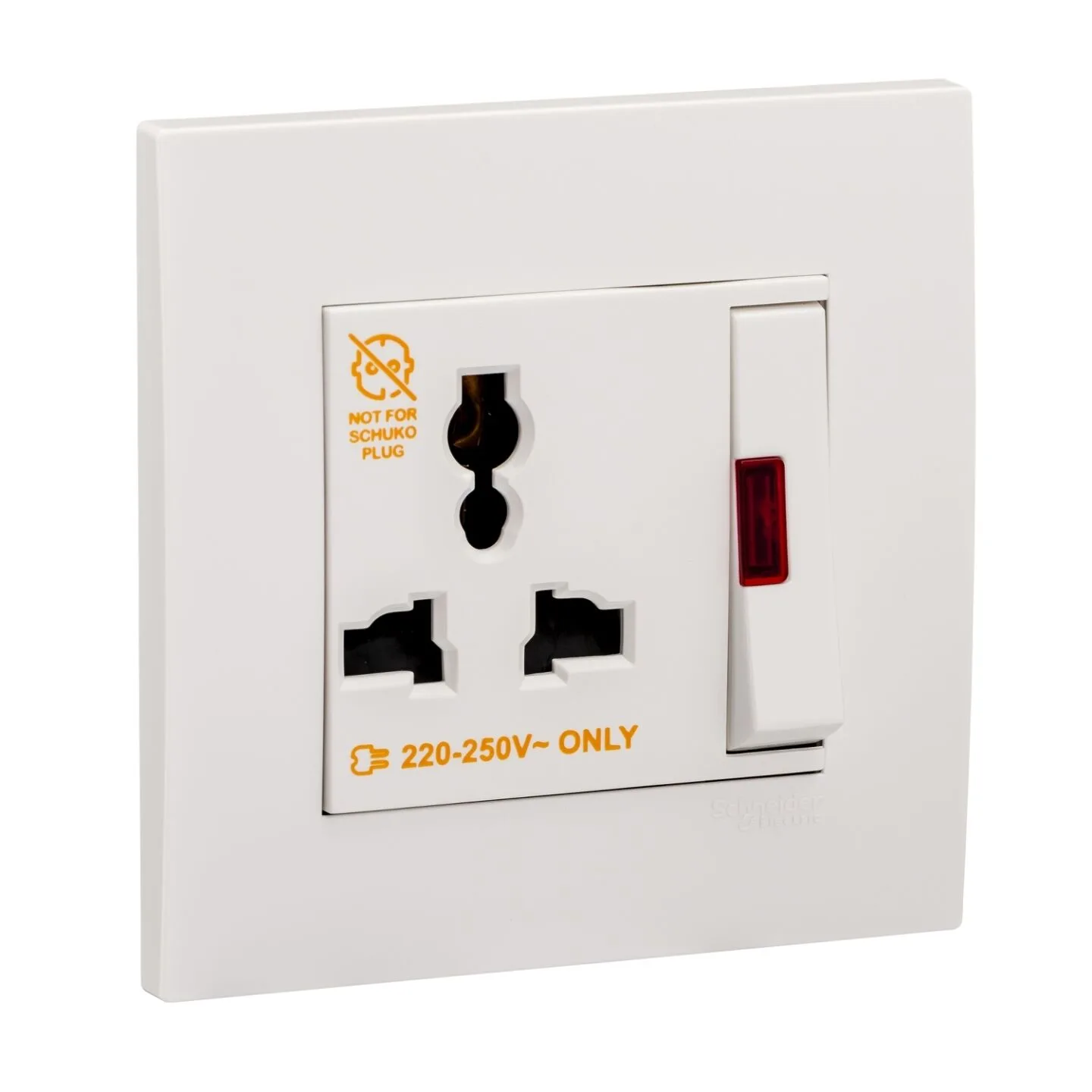

KB113LSN_WE – Ổ cắm đơn 3 chấu 13A

0 đã bán

167,710

Công ty TNHH DV SX Phương Minh

  • ĐC 1: E5 KDC Vạn Phát Hưng, Khu Phố 4, Phường Phú Thuận, Quận 7, HCM
  • ĐC 2: 40/29B Hoàng Bật Đạt, Phường 15, Quận Tân Bình, Tp.HCM
  • Thành viên: Công Ty TNHH Kỹ Thuật Công Nghệ PMS
  • ĐC: Số 7, Đường 13, Khu Phố 1, P.Bình Trưng Đông, Q2, HCM

Liên hệ mua hàng

Chia sẻ:

Mô tả

Main
range
Vivace
product or component type
Socket-outlet with switch
device short name
KB113
device application
Power supply
device presentation
Complete mechanism
Complementary
pilot light
Red neon indicator
outlet poles configuration
2P + E
number of gangs
1 gang
Colour tint
White
material
Polycarbonate: grid plate
Polycarbonate: surround
Polycarbonate: base
projecting depth
8 mm
device mounting
Flush
mounting support
Wall mounted
fixing mode
By screw M3.5
fixing center
60.3 mm
embedding depth
35 mm
rated current
13 A at 250 V AC, no inductive load
network frequency
50 Hz
contacts material
Brass and phosphor bronze
connections – terminals
Pillar terminal
terminal identifier
Earth
L
N
tightening torque
0.4 N.m
clamping connection capacity
3 x 2.5 mm²
2 x 4 mm²
width
86 mm
height
86 mm
Environment
standards
IEC 60884
ambient air temperature for operation
-5…40 °C
relative humidity
0…95 %
environmental characteristic
Indoor use
Offer Sustainability
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
